Mooring B0136 : Western Maine Shelf

SMRM Fall 2021 Pre-deployment

Latitude: 43° 10.77´N
Longitude: 70° 25.60´W
Location Description: East of Cape Neddick (York)
Deployed: Nov 03 2021
Coast Guard Light List Letter: B
Coast Guard Light List Number 113
Water Depth: 62 meters (203 feet)
Watch Circle Radius: 45 meters (148 feet)
Last Cell Phone Transmission: May 16, 07 AM EDT
Last GOES Transmission: May 16, 06 AM EDT
Latest Event:
Nov 03, 11 AM EDT
deployed by M/V Warren

Specialized Plots:
Temperature, Salinity, Density:

Text Reports: Surface, Ocean, Currents OR Data Download (All data for this location)

Sensor Information (this deployment only)

Latest Conditions:

Click on the graph icons below to see time series plots of the listed variables. The latest conditions are in local time but all plots are in GMT(Summer EDT is 4 hours behind GMT; Winter EST is 5 hours behind GMT; Atlantic AST is always 4 hours behind GMT).

We follow the convention that depth is measure positive "down". That's why parameters like wind speed have negative depths attached to them! The latest eastward and northward subsurface currents are displayed at a subset of available depths; no plots are presently available for current velocity vectors below 2m. Click here for additional Information.

Variable (measurement depth in meters) Last
Observation		 Last
Update
(EDT)		 Most
Recent Data
Plot		 Full
Deployment
Plot		 Full
Historical
Plot		 Make
My
Own
Significant Wave Height (0m)0.5 meters (1.7 ft)May 16 7:00 AM

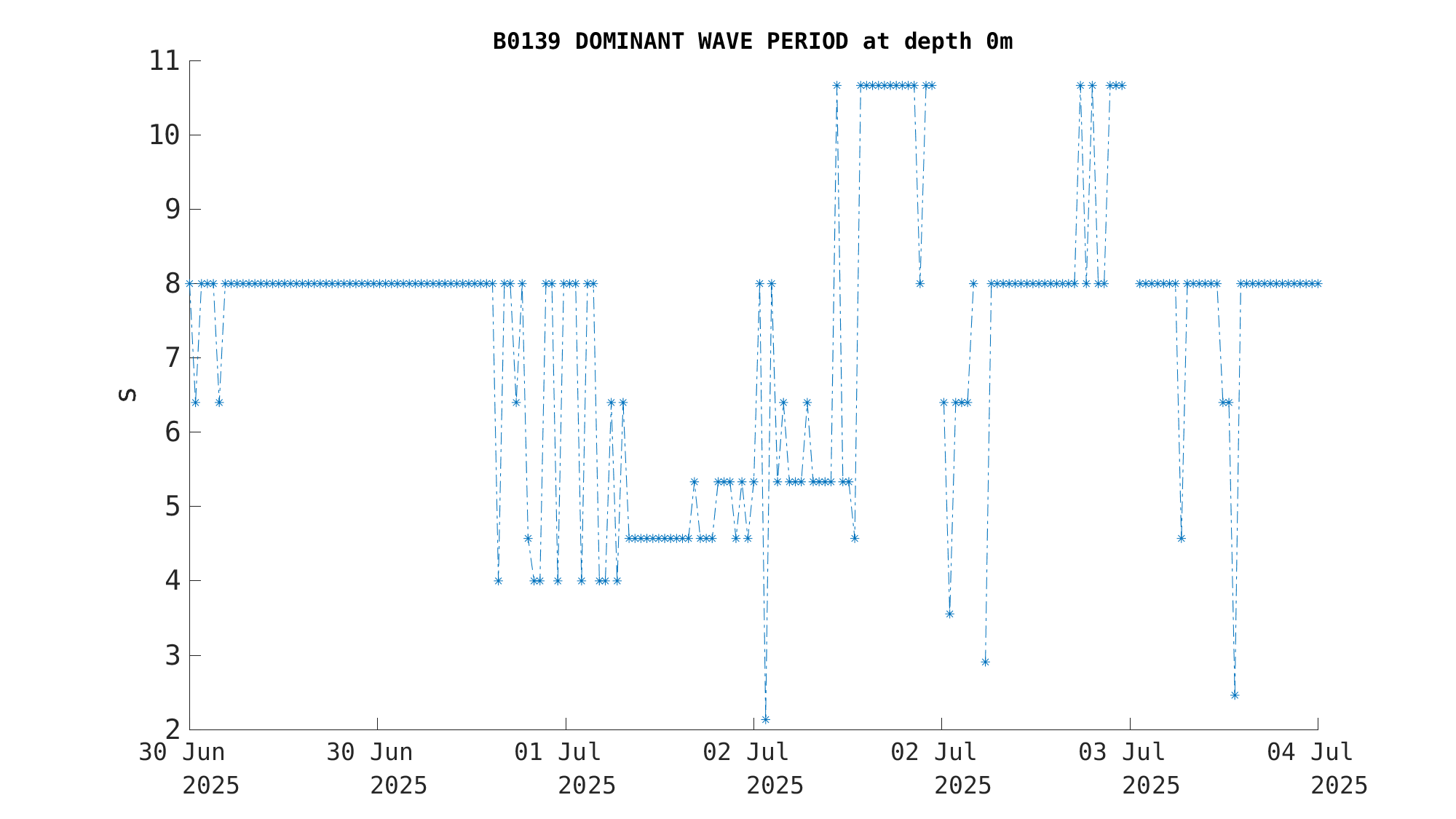

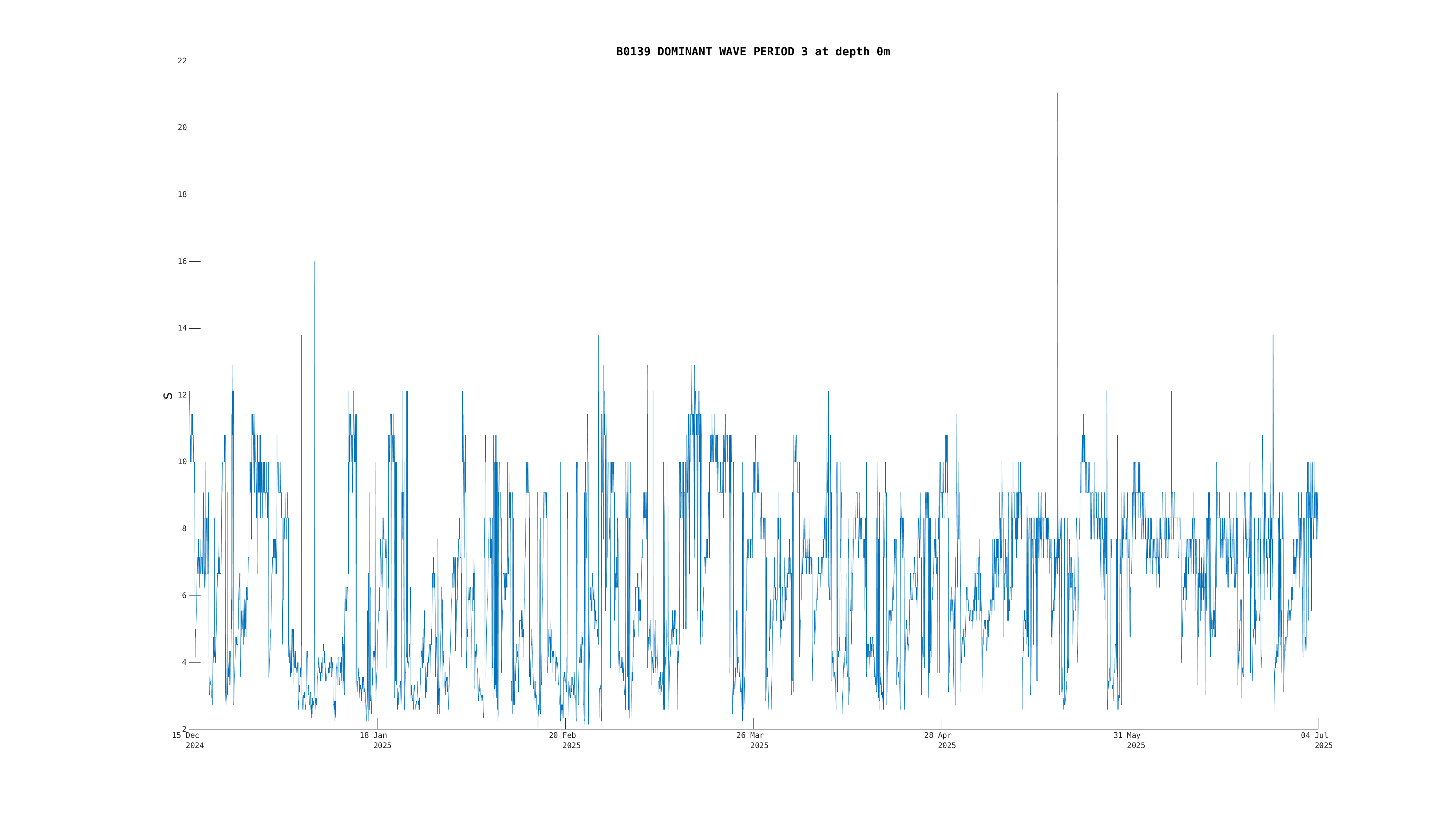

Dominant Wave Period (0m)8.0 seconds May 16 7:00 AM
Significant Wave Height (test) (0m)0.5 meters (1.6 ft)May 16 7:00 AM

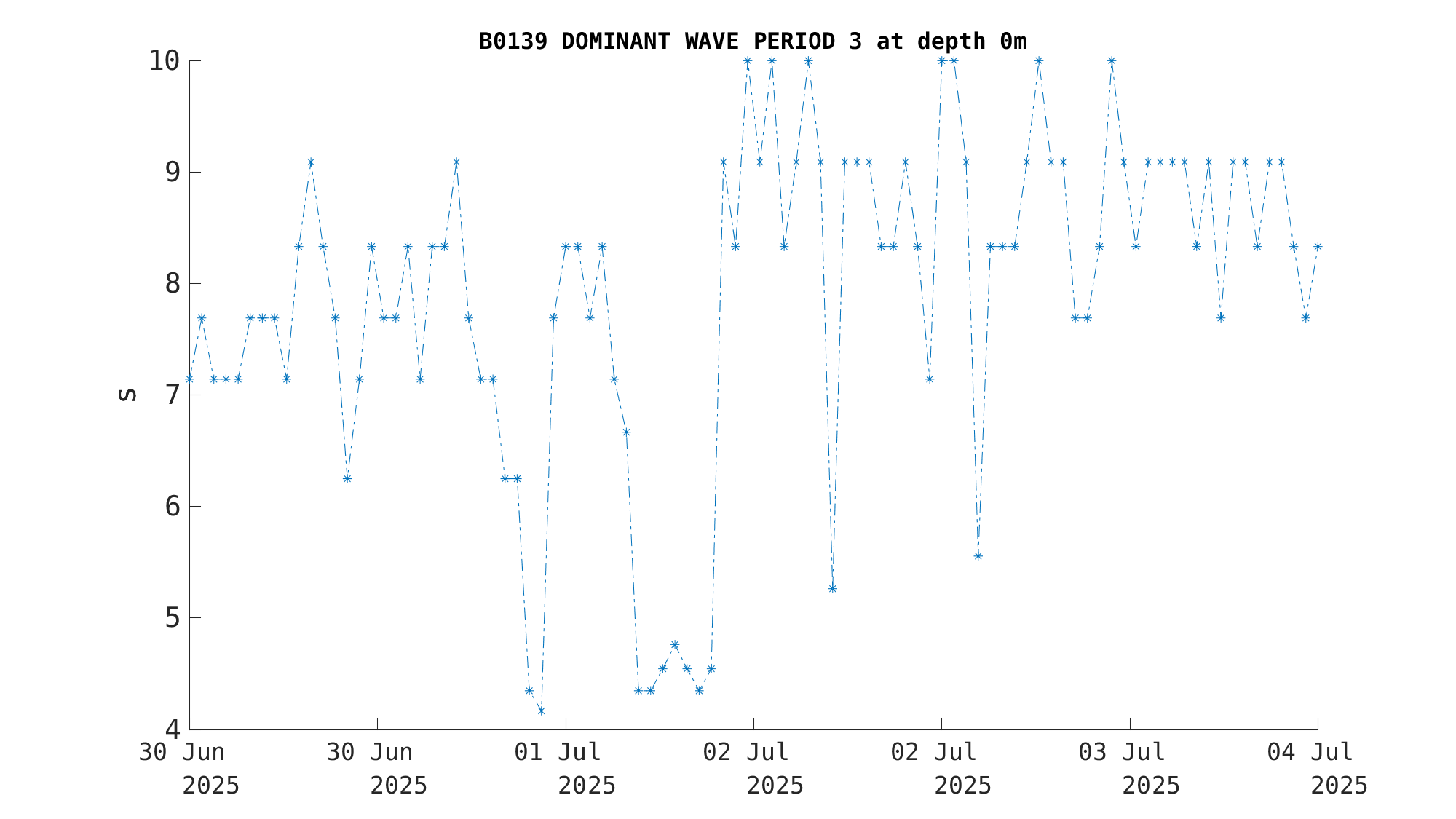

Dominant Wave Period (test) (0m)8.3 seconds May 16 7:00 AM

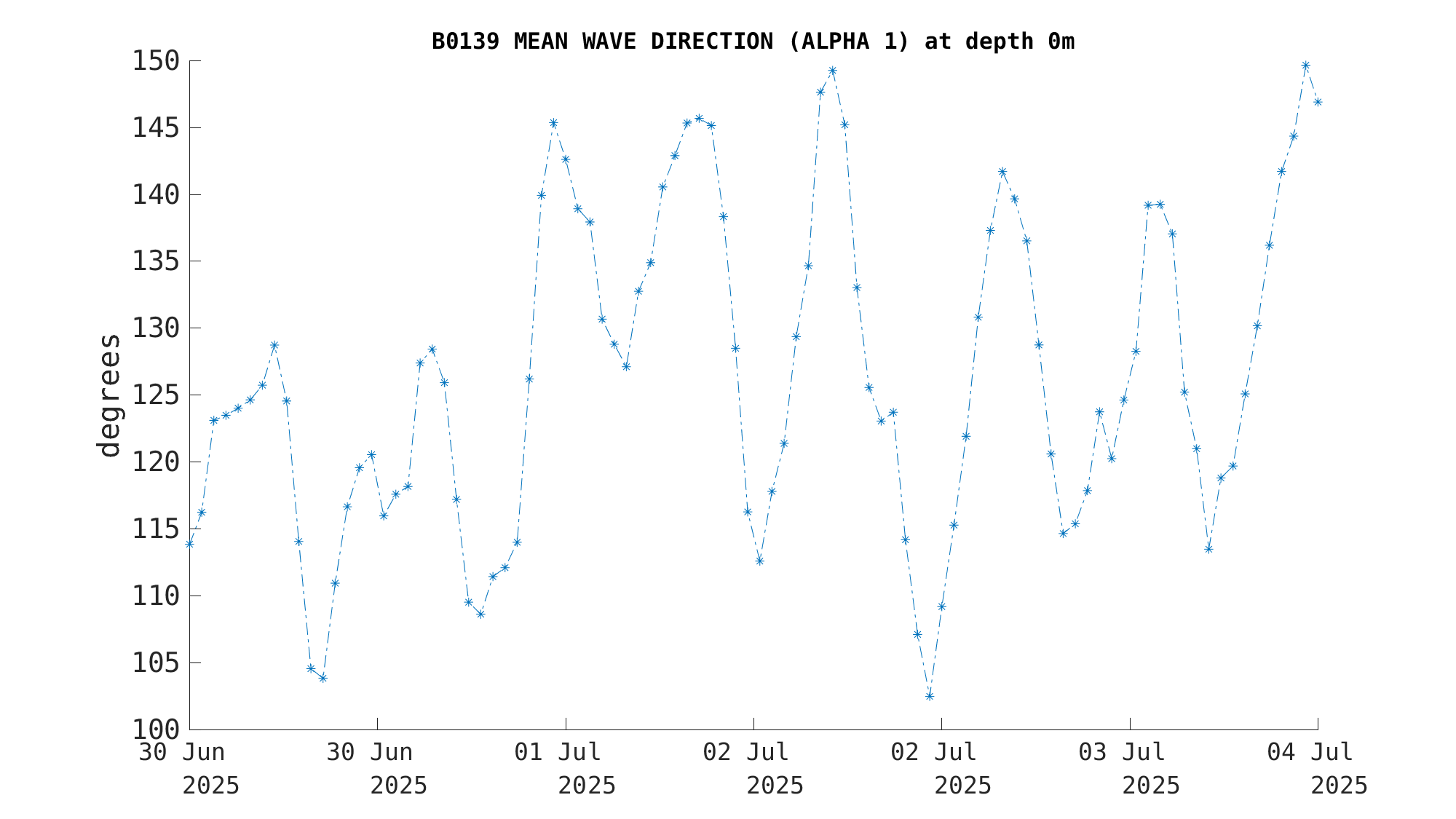

Mean Wave Direction (test) (0m)144.3 degrees May 16 7:00 AM
Air Temperature (-3m)11.0 C (51.8 F)May 16 7:00 AM
Visibility (-3m)3000.6 meters May 16 7:00 AM
Barometric Pressure (-3m)1006.5 millibars May 16 7:00 AM

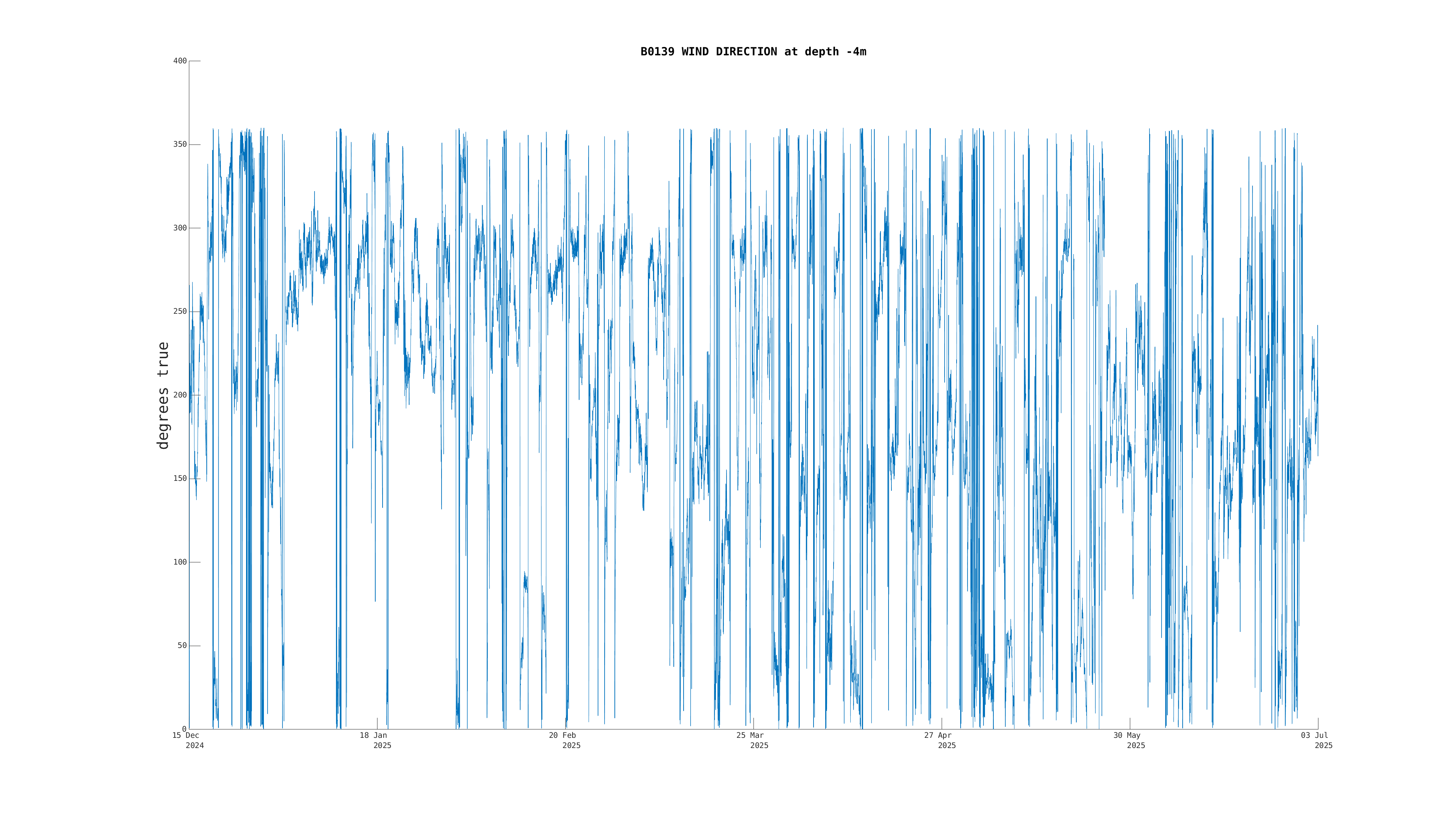

Wind Direction [Primary] (-4m)NNEMay 16 7:00 AM
Wind 2 Direction (-4m)Sensor FailureMay 16 7:00 AM
Wind Speed [Primary] (-4m)3.2 m/s (7 mph, 6 kts)May 16 7:00 AM

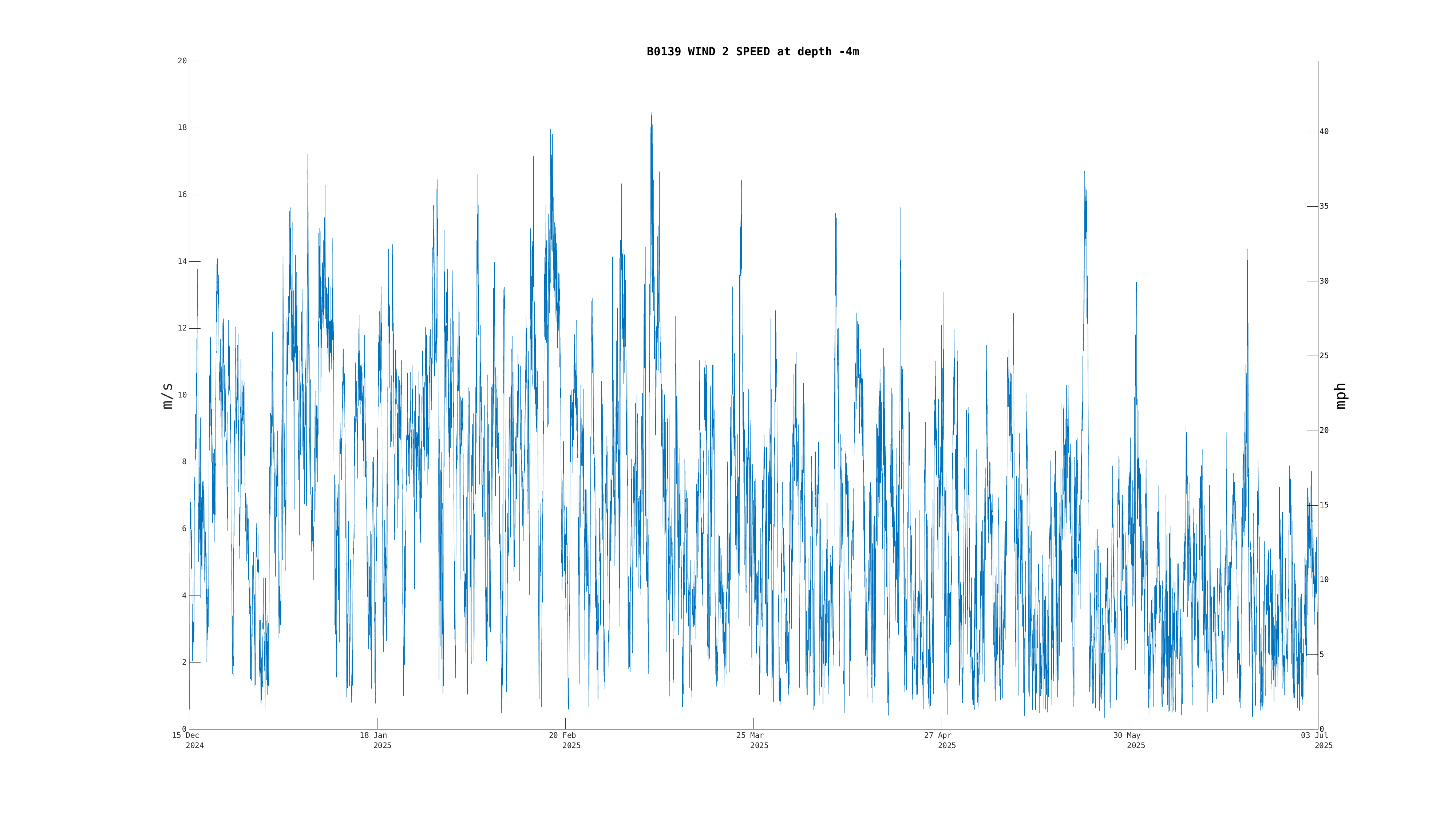

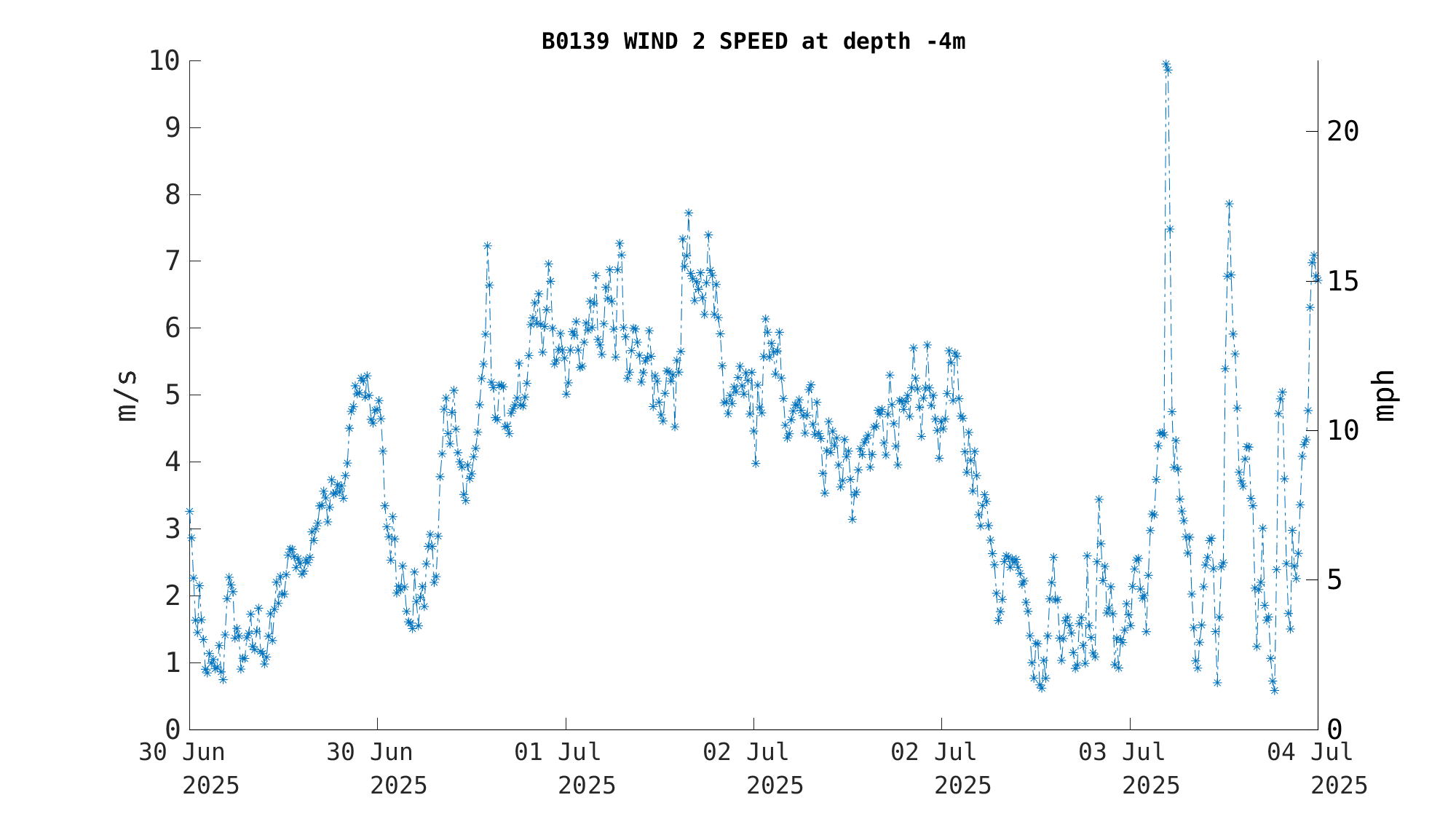

Wind 2 Speed (-4m)Sensor FailureMay 16 7:00 AM
Wind Gust [Primary] (-4m)3.8 m/s (9 mph, 7 kts)May 16 7:00 AM

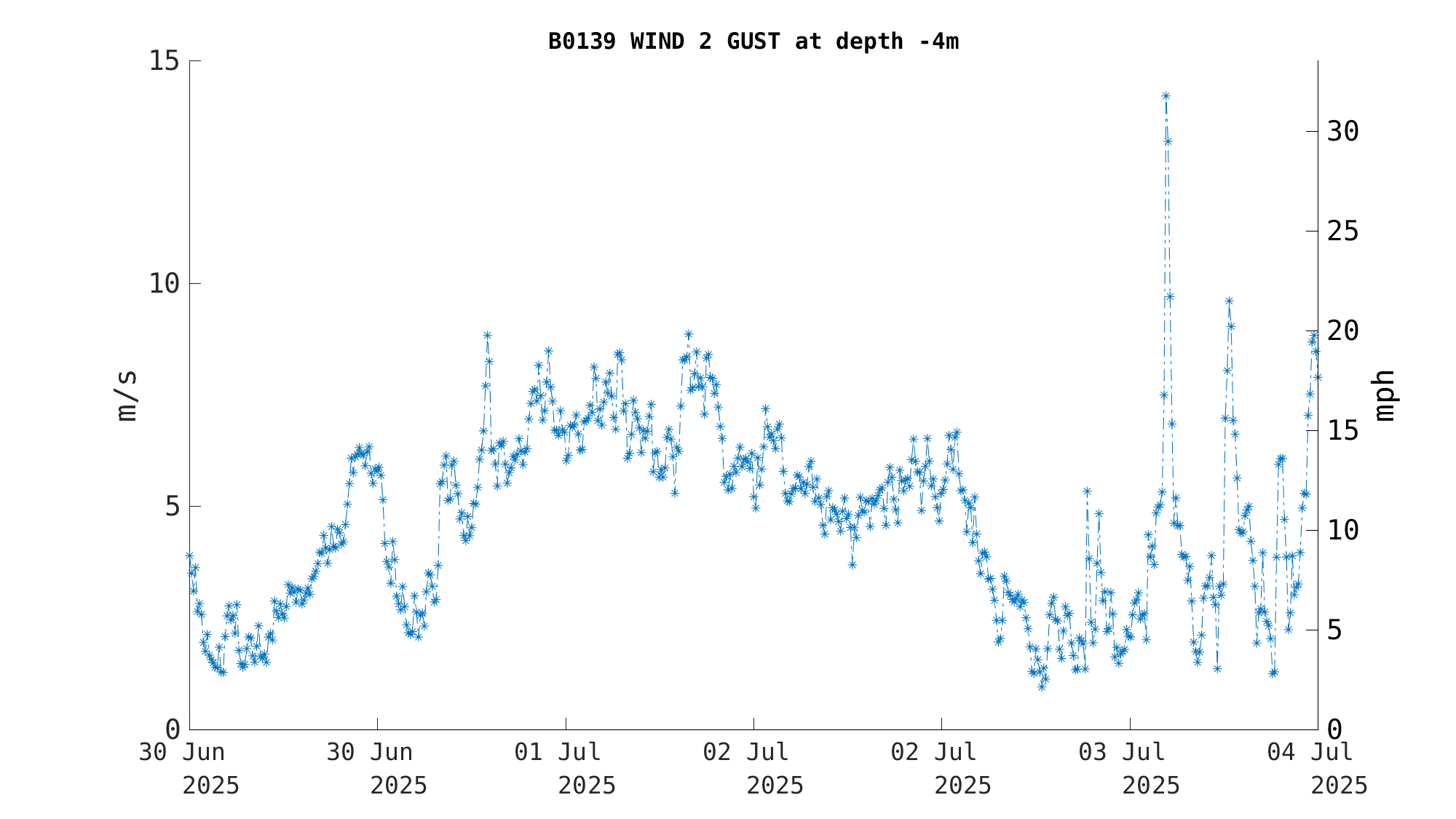

Wind 2 Gust (-4m)Sensor FailureMay 16 7:00 AM
Water Temperature (1m)Sensor FailureMay 16 6:00 AM
Water Temperature (2m)10.9 C (51.7 F) May 16 7:00 AM
Water Temperature (10m)8.4 C (47.2 F) May 16 7:00 AM

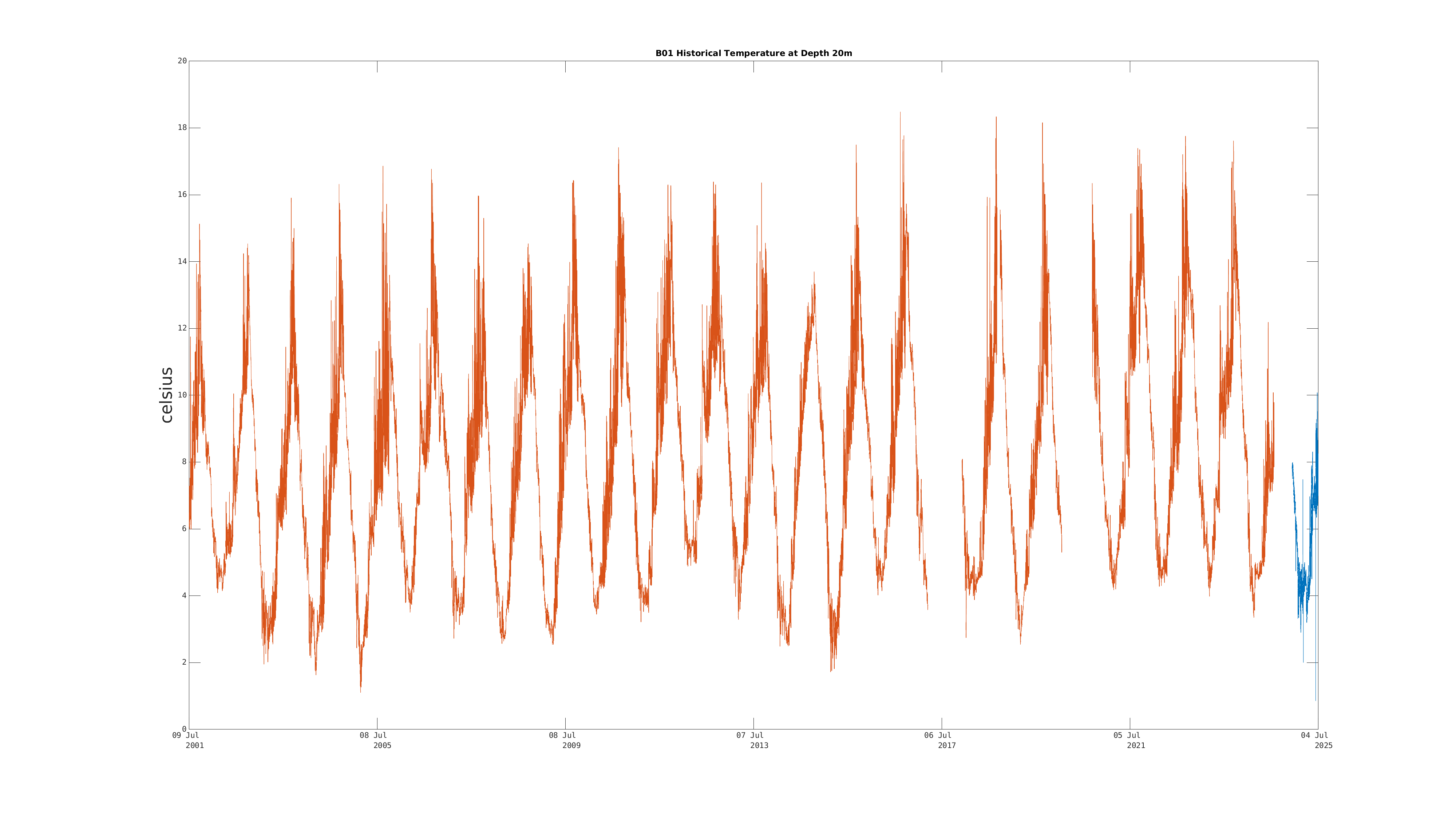

Water Temperature (20m)7.3 C (45.2 F) May 16 7:00 AM

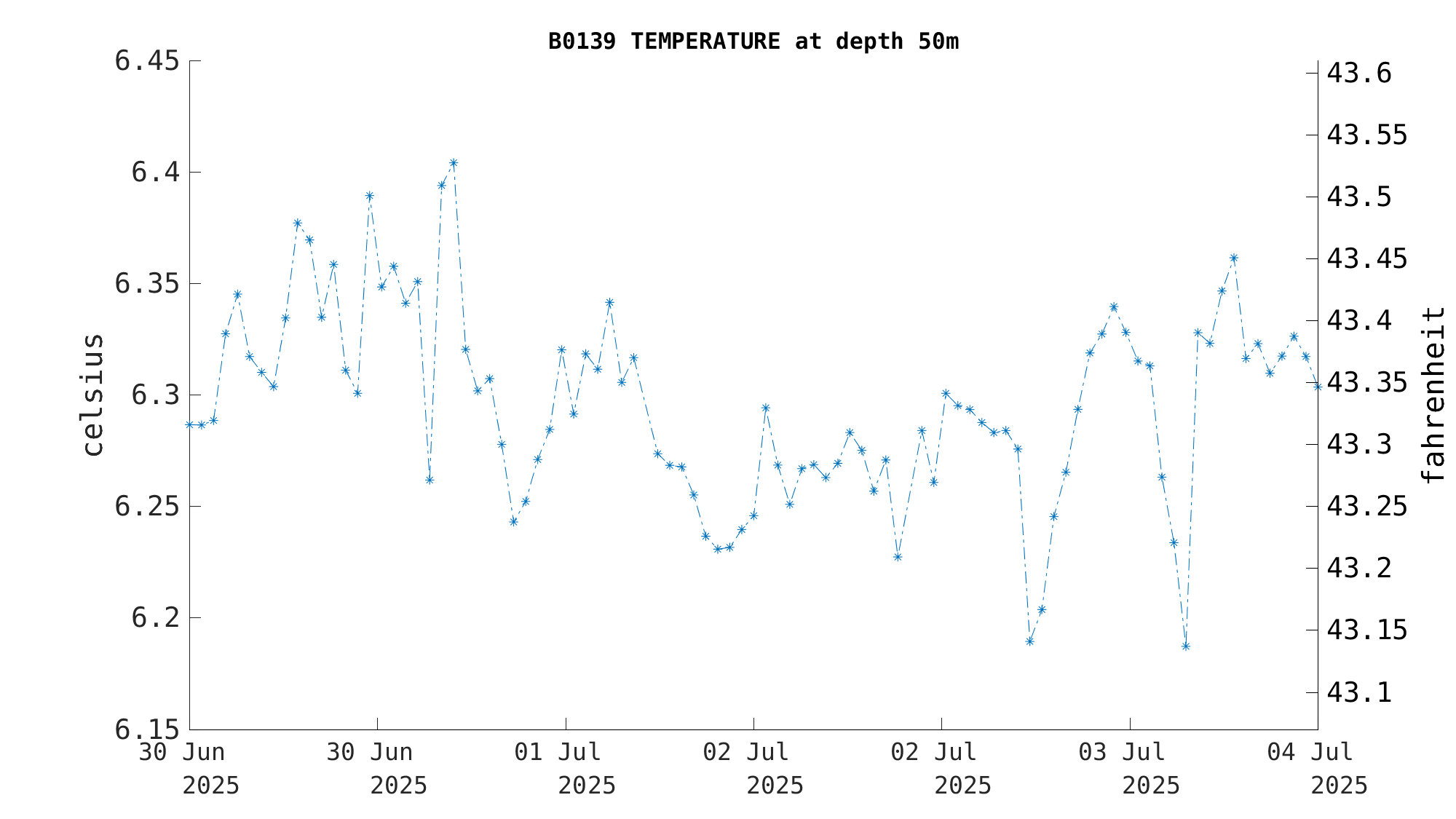

Water Temperature (50m)6.7 C (44.0 F) May 16 7:00 AM

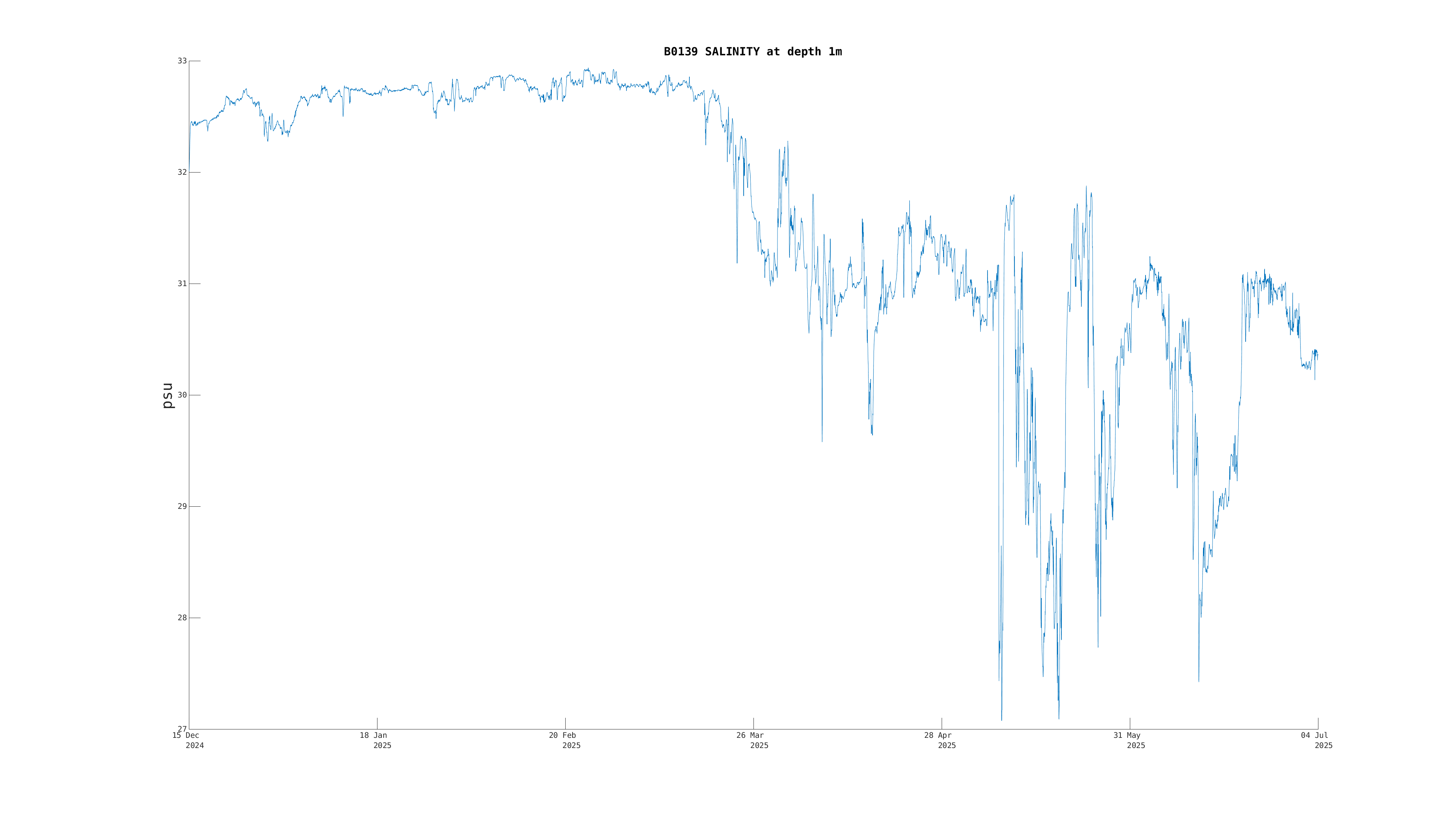

Salinity (1m)Sensor FailureMay 16 6:00 AM

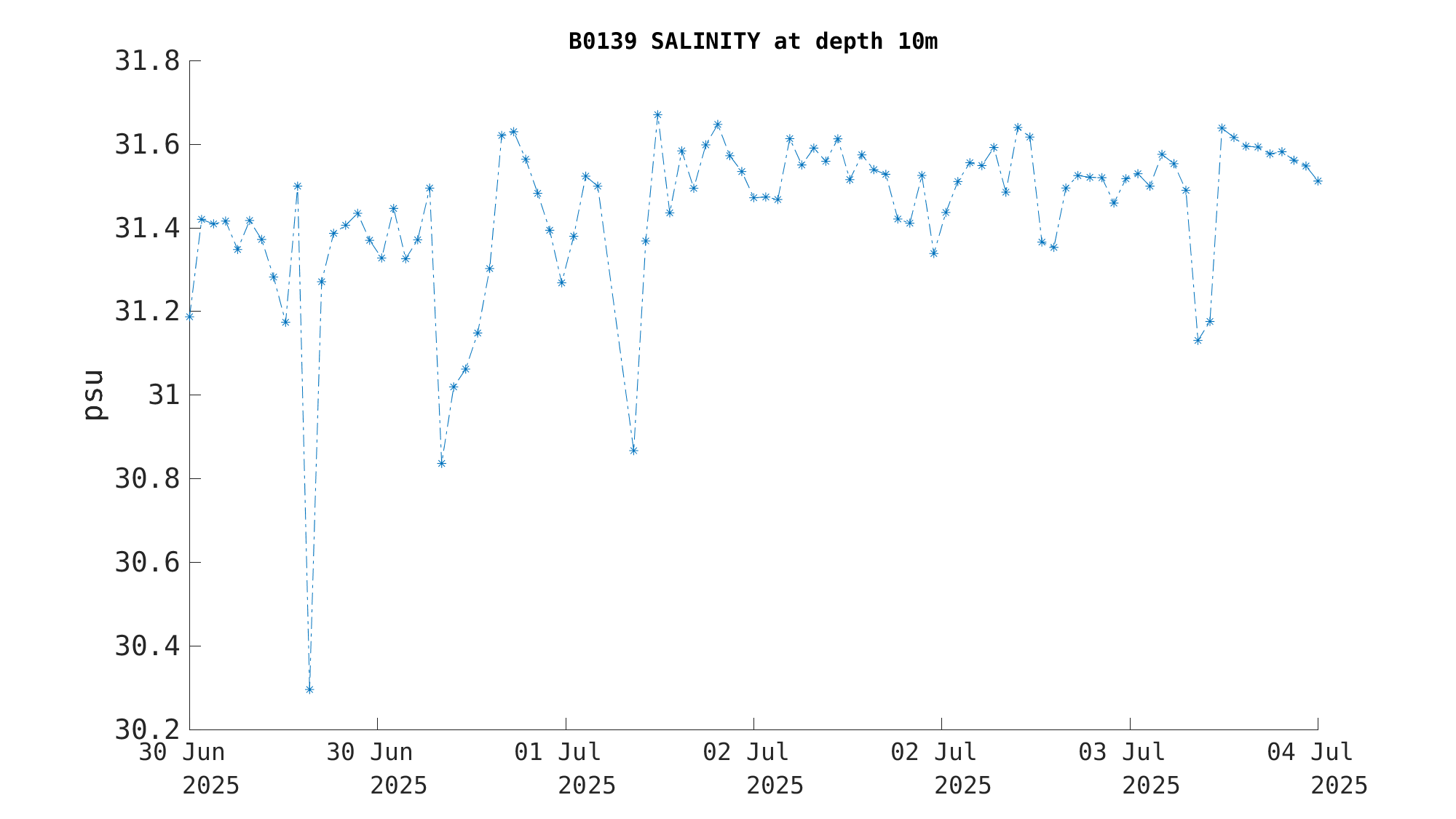

Salinity (10m)31.2 psu May 16 7:00 AM

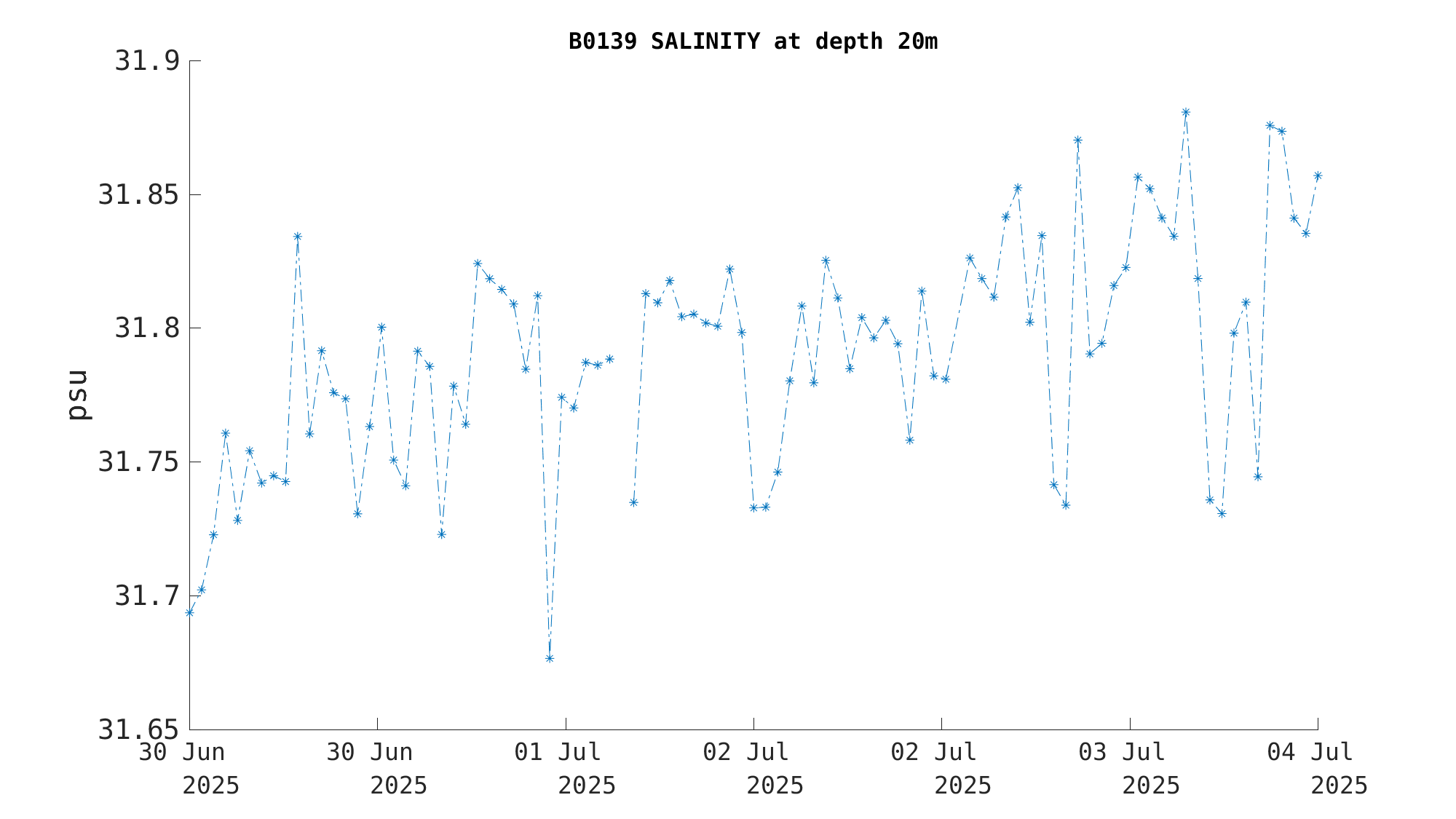

Salinity (20m)32.2 psu May 16 7:00 AM
Salinity (50m)32.3 psu May 16 7:00 AM
Pressure (10m)9.7 decibars May 16 7:00 AM
Pressure (50m)49.1 decibars May 16 7:00 AM
Sigma-T (1m)Sensor FailureMay 16 6:00 AM
Sigma-T (10m)24.2 kg/m^3 May 16 7:00 AM

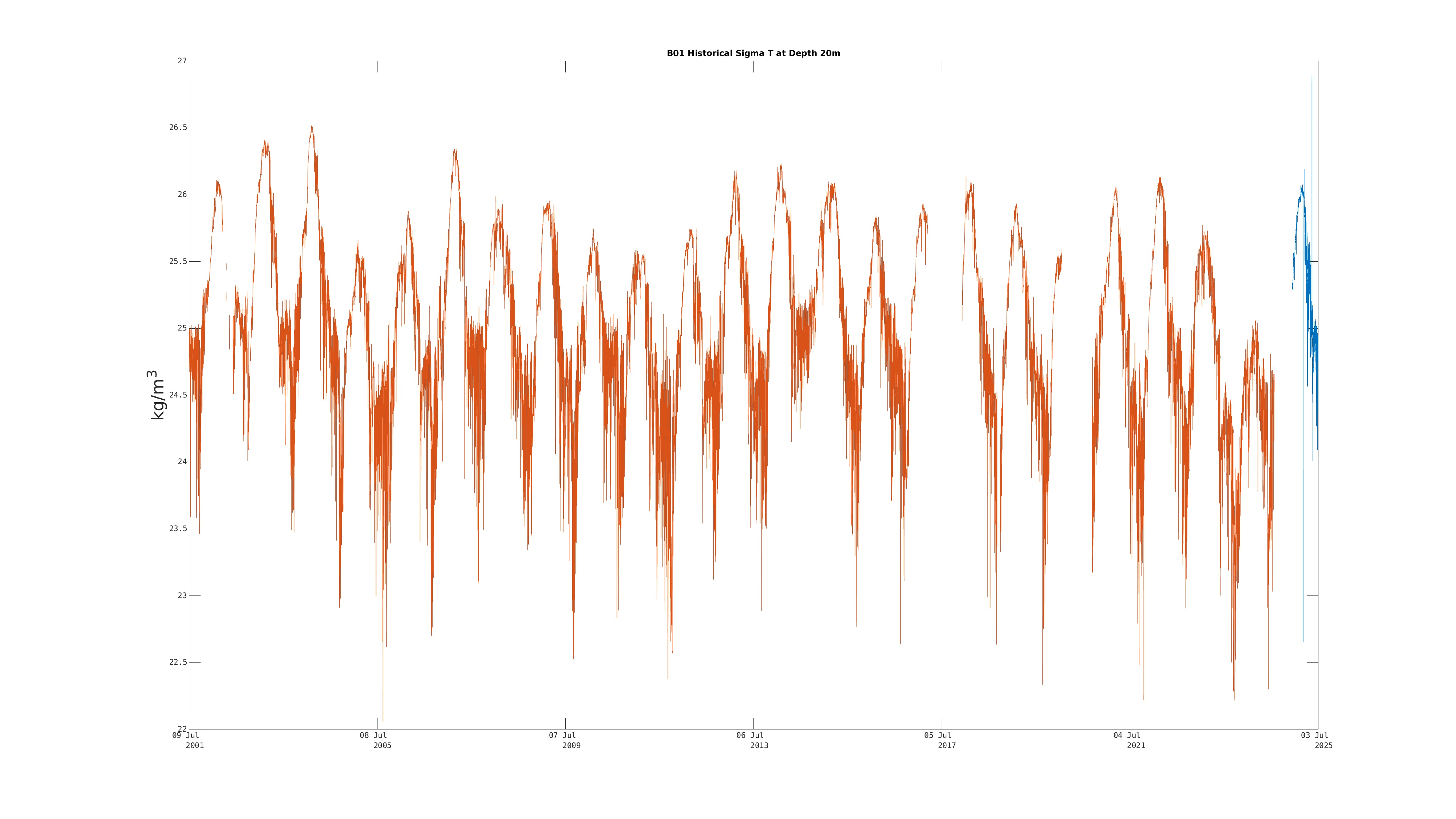

Sigma-T (20m)25.1 kg/m^3 May 16 7:00 AM

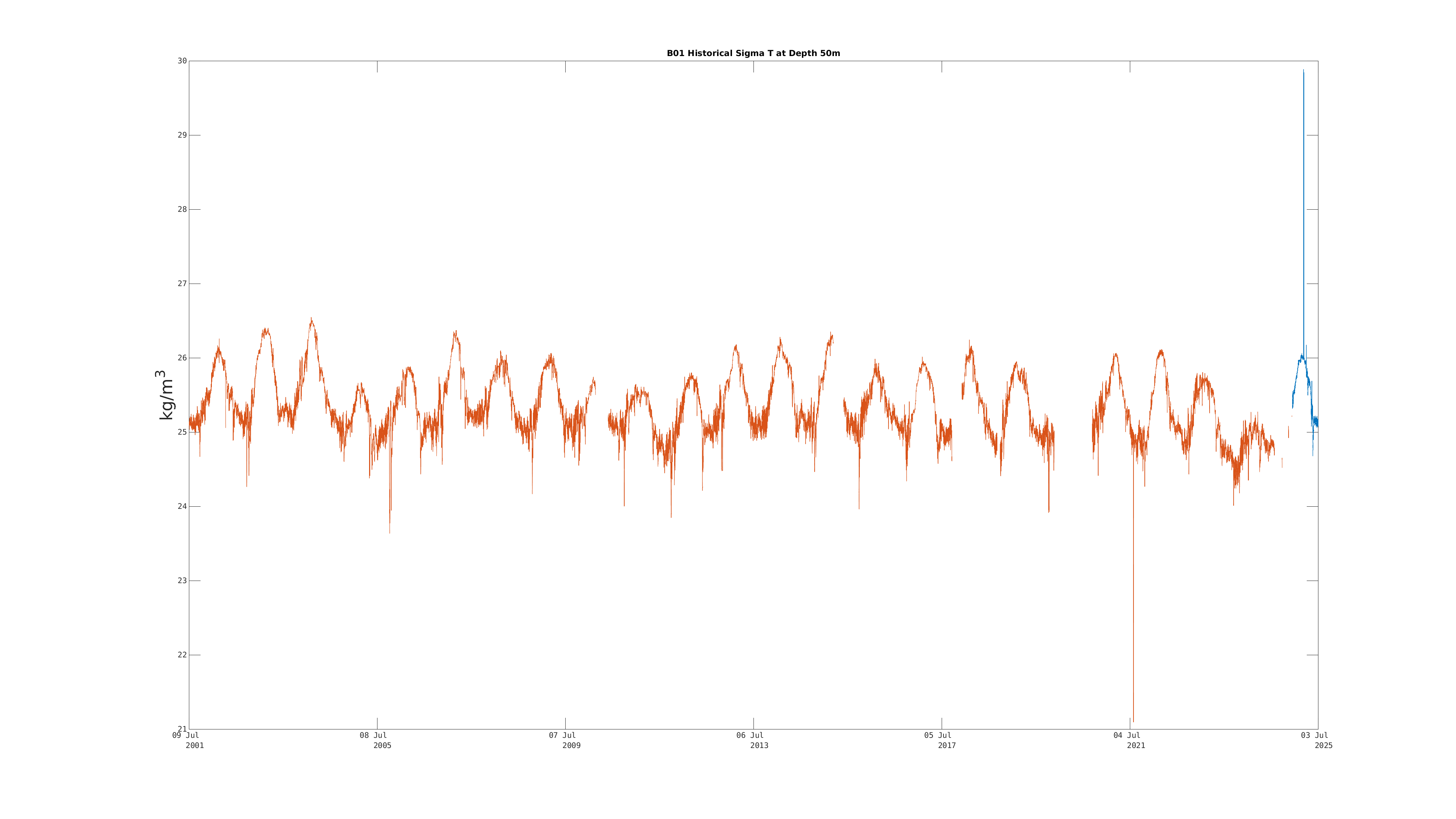

Sigma-T (50m)25.3 kg/m^3 May 16 7:00 AM

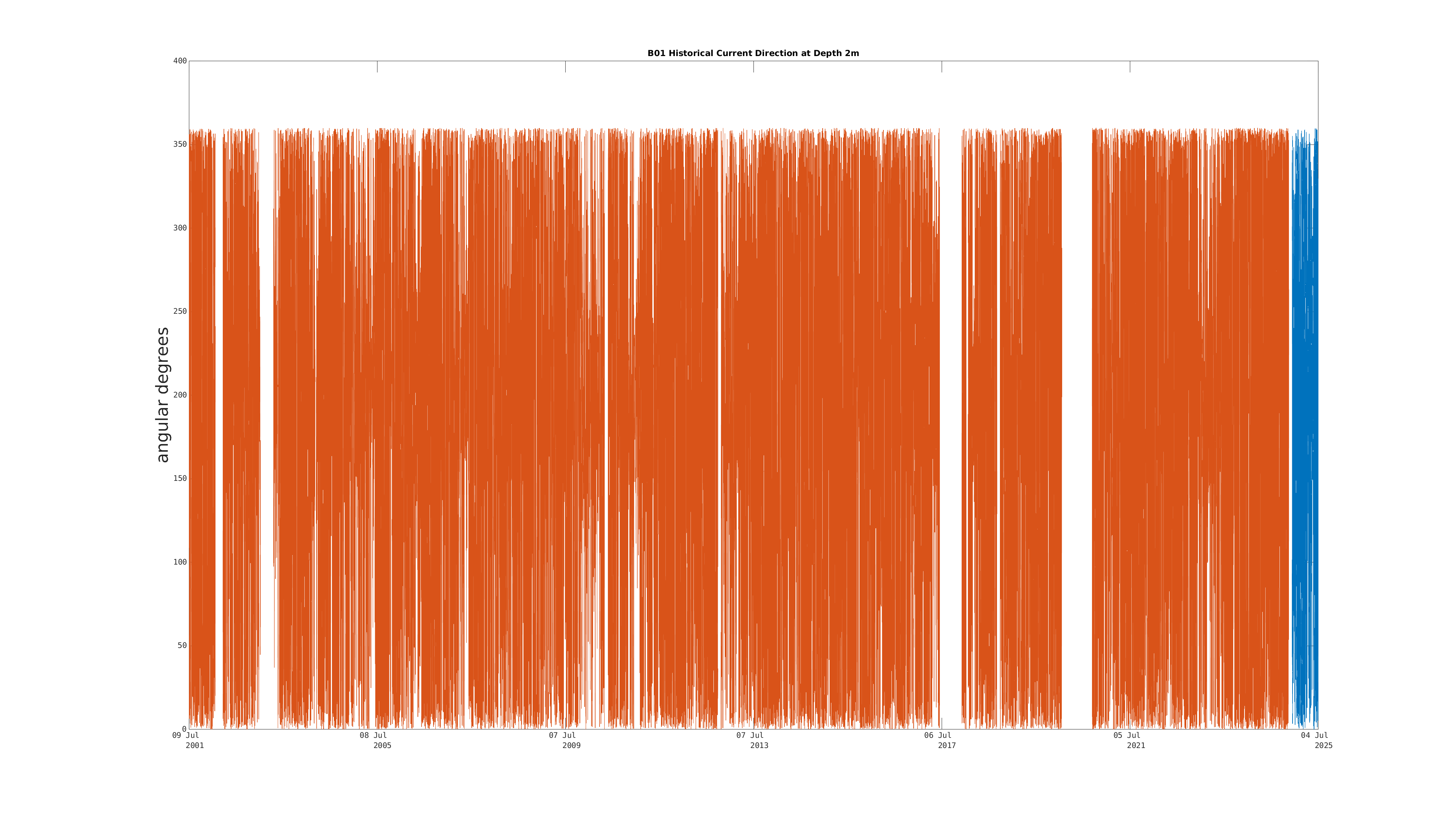

Current Direction (2m)WestMay 16 7:00 AM

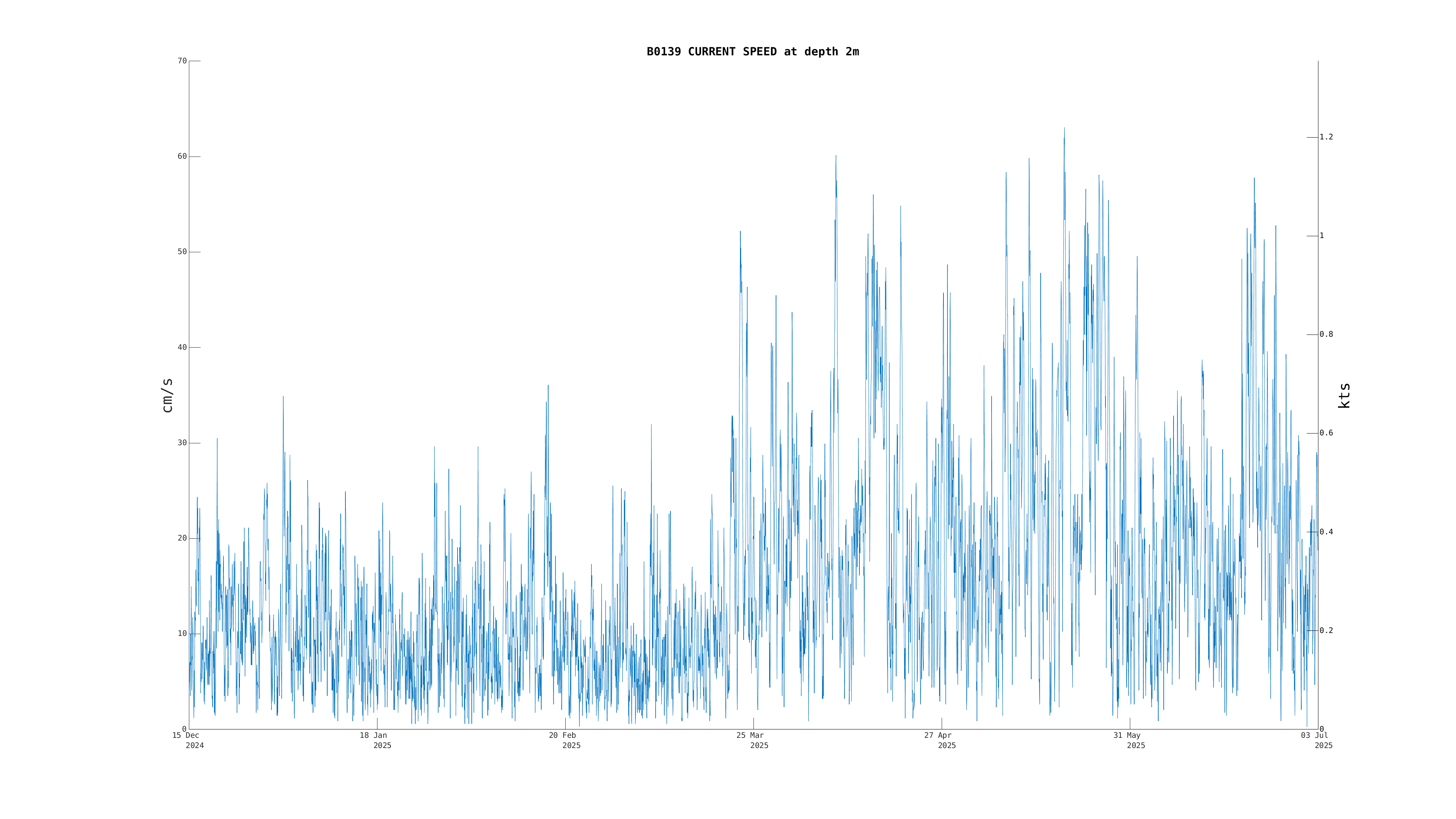

Current Speed (2m)21.2 cm/s (0.41 kts)May 16 7:00 AM

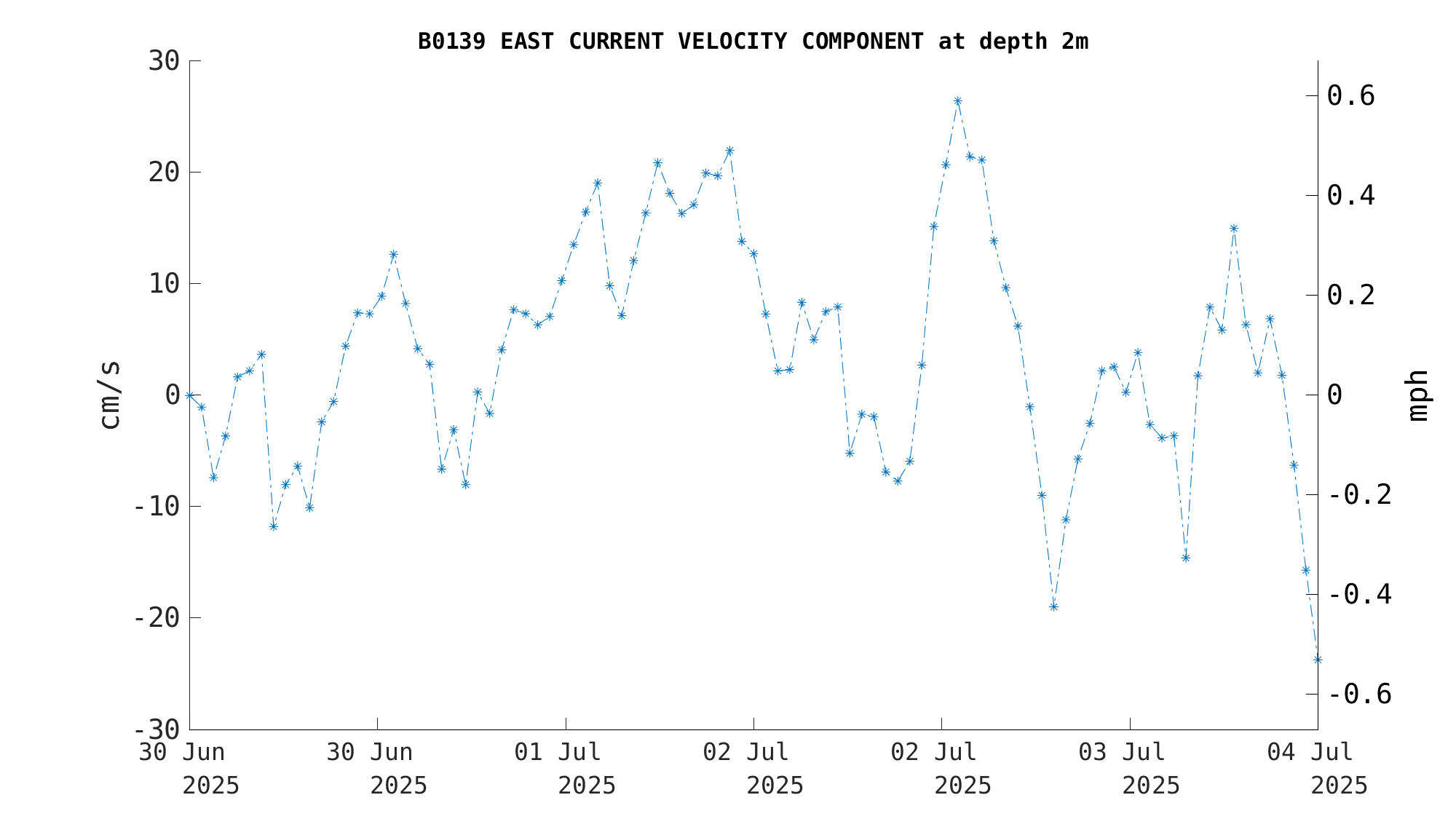

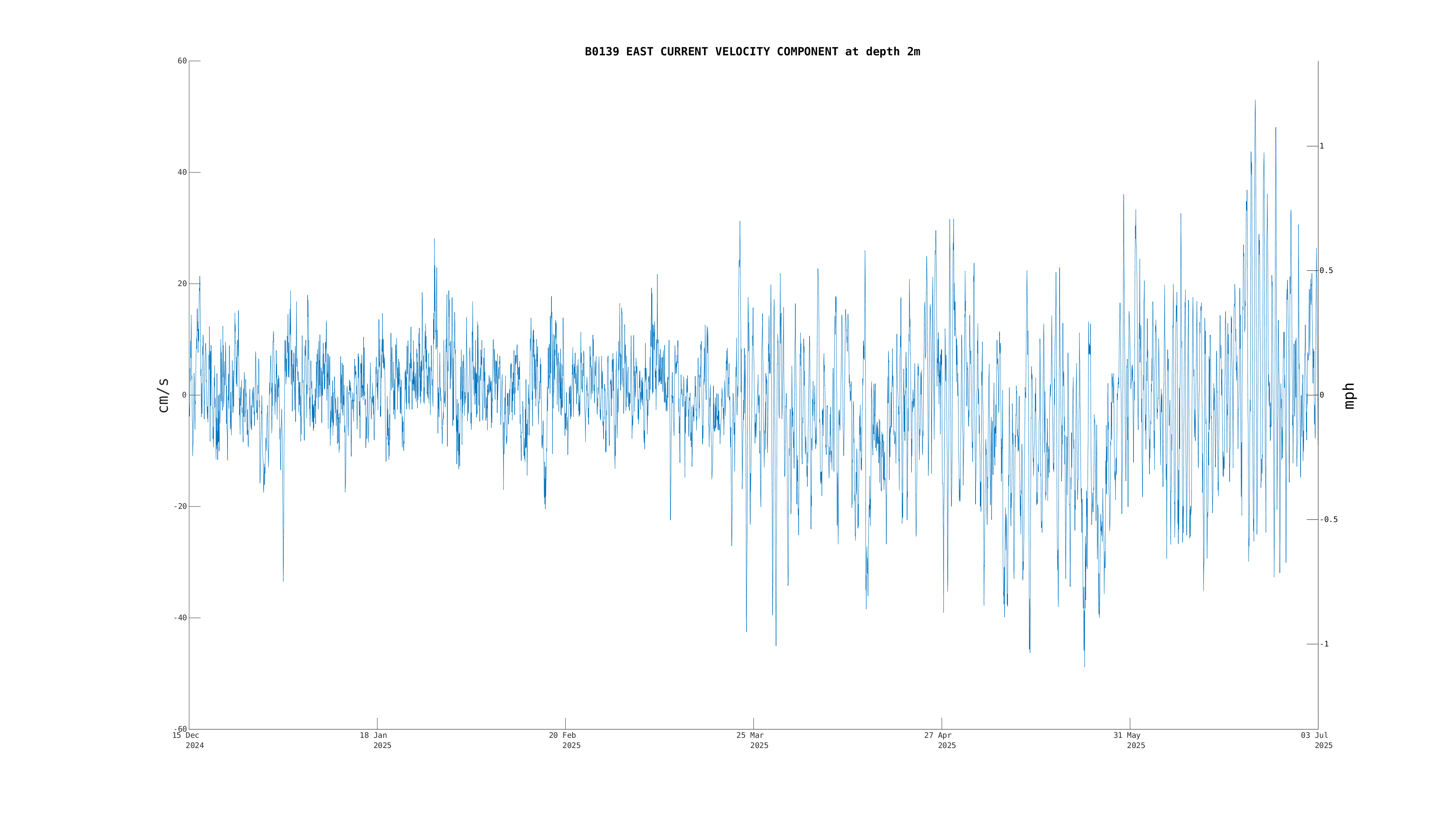

East Current Velocity (2m)-20.8 cm/s (-0.40 kts)May 16 7:00 AM
East Current Velocity (10m)-4.6 cm/s (-0.09 kts)May 16 7:00 AM
East Current Velocity (14m)-5.8 cm/s (-0.11 kts)May 16 7:00 AM
East Current Velocity (18m)-7.0 cm/s (-0.14 kts)May 16 7:00 AM

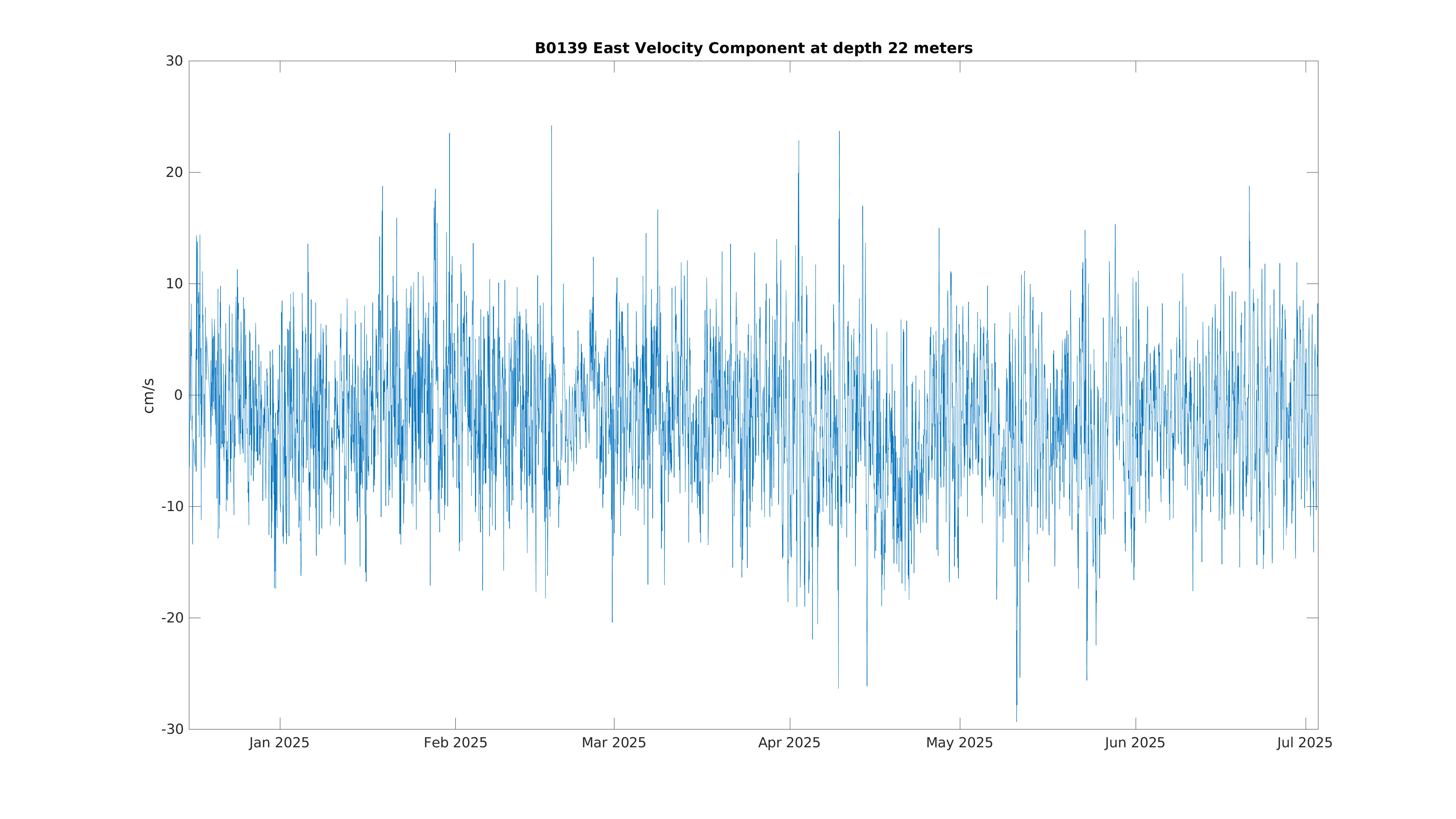

East Current Velocity (22m)-3.3 cm/s (-0.06 kts)May 16 7:00 AM

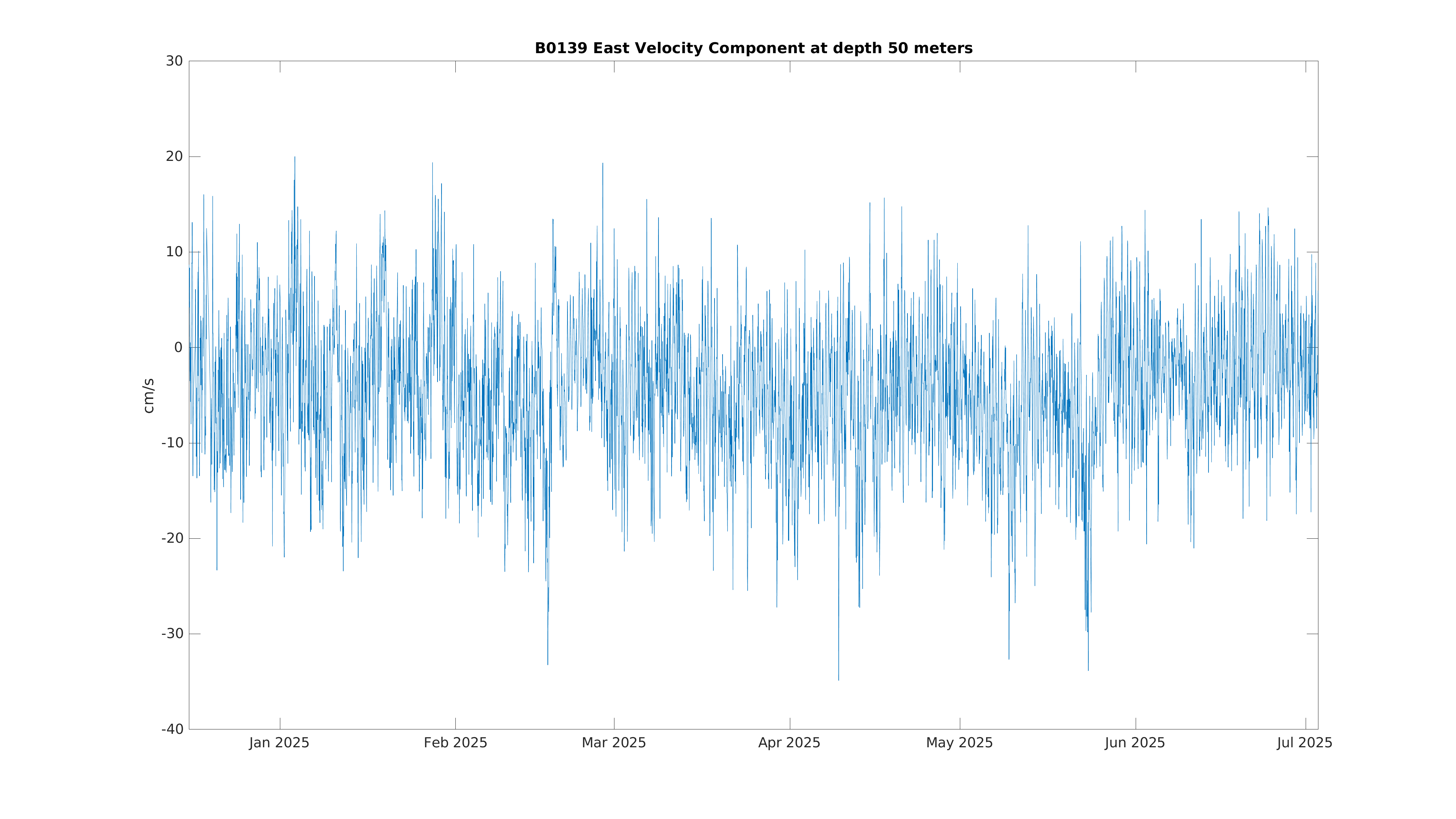

East Current Velocity (50m)-0.9 cm/s (-0.02 kts)May 16 7:00 AM
North Current Velocity (2m)-3.9 cm/s (-0.08 kts)May 16 7:00 AM
North Current Velocity (10m)-11.4 cm/s (-0.22 kts)May 16 7:00 AM
North Current Velocity (14m)-3.3 cm/s (-0.06 kts)May 16 7:00 AM
North Current Velocity (18m)-3.0 cm/s (-0.06 kts)May 16 7:00 AM
North Current Velocity (22m)-1.8 cm/s (-0.04 kts)May 16 7:00 AM
North Current Velocity (50m)2.2 cm/s (0.04 kts)May 16 7:00 AM

Measured Ocean Currents and Wind Stress

Hourly averaged wind stress at 4 m and currents (rotated to true north) at 2 m (current meter) and from 10 m to a maximum of 126 m (Doppler).
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot

Wind and Residual Ocean Currents

Measured winds and currents which are low-pass filtered to remove tidal currents. Winds at 4 m above sea surface, surface currents at a depth of 2 m, and doppler currents at 4 meter bins from 10 meters to a maximum of 126 meters.
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot
